- Temperature Control Range of Floating Slide: RT.~70℃
- Temperature Control Range of Baking Slide: RT.~99℃
- Dimensions of Water Bath Dish: 210*170*55mm
- Dimensions of Baking Table: 250*108mm (50 slides)

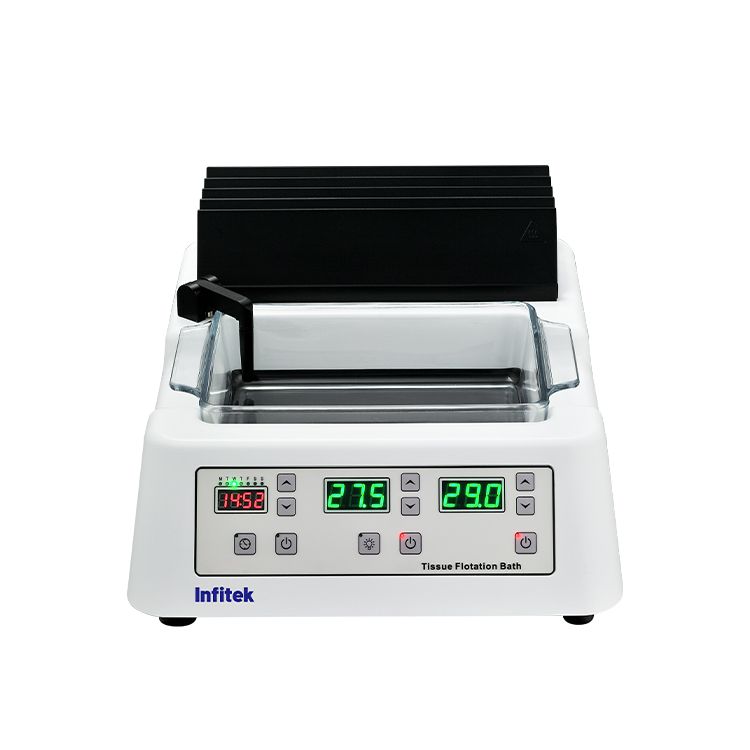

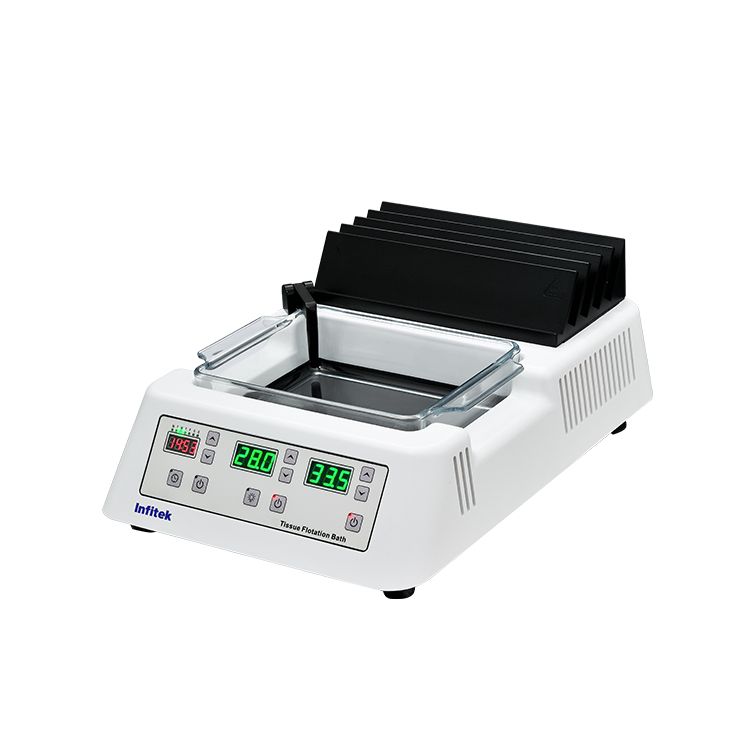

Floatation Workstation (Water Bath & Slide Dryer), TSBW-TK
Beschreibung
It is suitable for pathological research, hospitals, medical schools and research institutes, and food and drug inspection departments.
- Fully computerized automatic control program, using imported single-chip microprocessor control, with complete functions and simple settings;
- Large pure green digital display module, clear display, real-time display of all working status parameters, more intuitive data;
- The temperature measurement adopts imported temperature measurement integrated circuit , which has high precision and reliable performance;
- New heating element, fast heating, long life and energy saving;
- Direct collection of the operating environment temperature ensures more accurate temperature measurement.
- Pre-interface (optional) for real-time collection of online temperature (network);
- With memory function, the set temperature is automatically retained after operation.
- Triple overheat protection device, safe and reliable.
- Low voltage DC lighting system, horizontal lighting design, no glare, clearer observation.
- High borosilicate high temperature resistant glass heating pot, high light transmittance, split design, easy to change liquid and maintain.
- PID two-way independently controls the temperature of the spreading and baking slices without affecting each other.
- It has the functions of adjusting lighting brightness and display brightness.
- Equipped with high-precision clock, multi-window independent display, and clear working status.
- You can preset the machine on and off at any time every week. You can set the timer for the whole machine or for spreading and baking the slices separately.
- With power-off memory and call-in self-start function.
- Scientific physical slope and serrated baking table make it easy to put and take.
- The baking table is made of special black material, which is corrosion-resistant and wear-resistant.
Model | TSBW-TK |
Temperature Control Range of Floating Slide | RT.~70℃ |
Temperature Control Range of Baking Slide | RT.~99℃ |
Dimensions of Water Bath Dish | 210*170*55mm |
Dimensions of Baking Table | 250*108mm (50 slides) |
Electricity | AC 100V~120V/AC220V~240V, 50Hz/60Hz |
Power | 400W |
External Dimension | 310*460*135mm |
Net Weight | 6kg |
