- Speed Range: 7500~30000rpm, 4000~26000rpm
- Speed Control: Gear adjustment, Knob adjustment
- Capacity: 0.2~10000ml (Optional)
- Interchangeable work heads (multiple specifications)

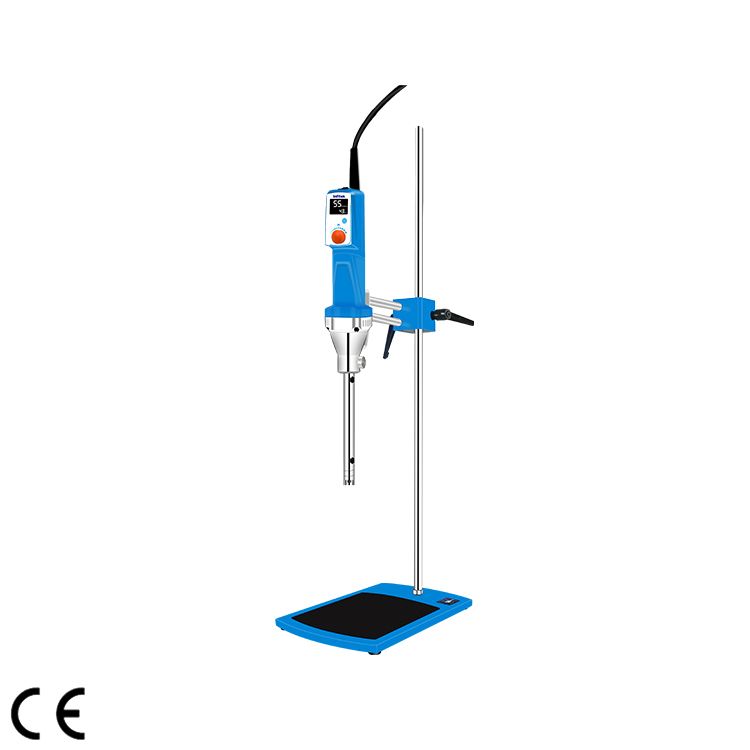

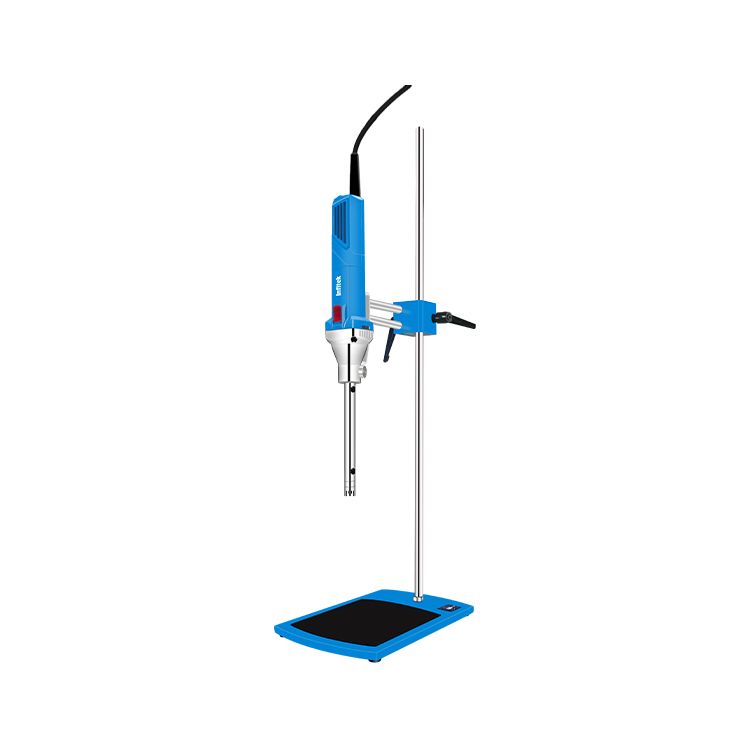

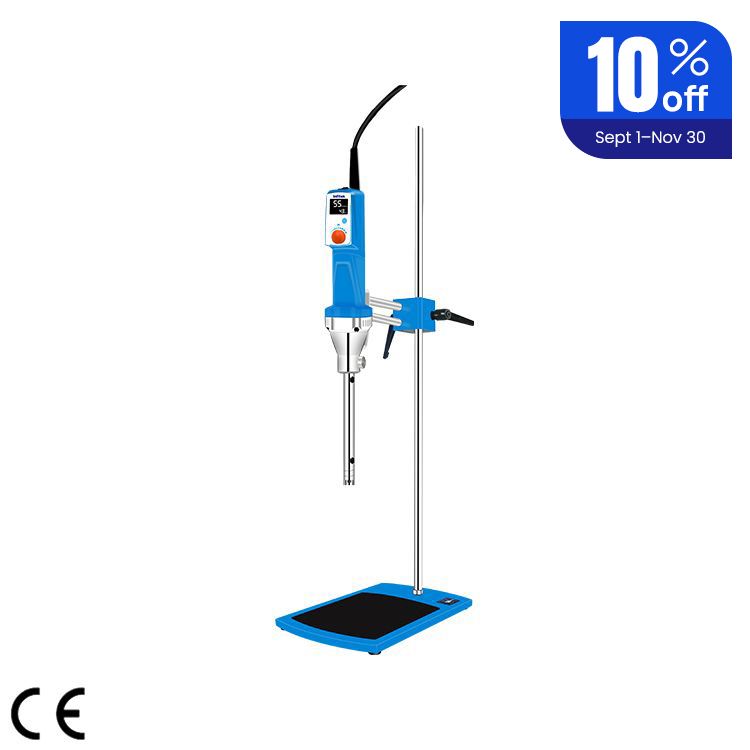

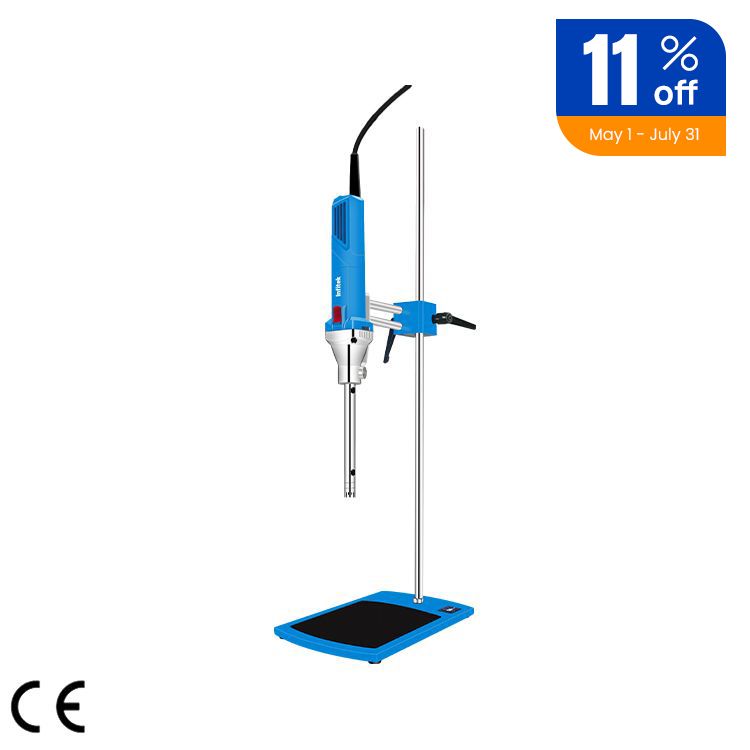

Homogenizer, HMG-25, HMG-25D
Beschreibung
Application
It is a precision-engineered system designed for sample homogenization and emulsification. Compatible with multiple interchangeable work heads of varying specifications, it enables rapid sample dispersion, homogenization, emulsification, suspension, and mixing. It has been used in different fields of biological tissue processing (animal/plant cell disruption), pharmaceutical formulation, cosmetic emulsion, food technology, chemical synthesis.
Features
- Interchangeable work heads (multiple specifications) for 0.2~10,000mL processing capacity, adaptable to diverse sample requirements.
- Compact ergonomic design, delivering 27m/s linear velocity for precision homogenization.
- Integrated vertical adjustment system with dual-axis support rod and bifurcated clamp ensures safety-critical operation.
- Stepless speed control, up to 30,000 rpm with smooth acceleration control, offers 6 preset speed profiles. (HMG-25)
- Continuously adjustable speed from 4,000 to 26,000 rpm, with programmable timer (0~999 min) enabling automatic shutdown upon completion.(HMG-25D)
- Optional thermocouple probe provides real-time sample temperature monitoring; auto-stop at preset threshold prevents thermal degradation and ensures experimental safety.(HMG-25D)
Specification
| Model | HMG-25 | HMG-25D |
| Type | Basic | Digital |
| Speed Range | 7500~30000rpm | 4000~26000rpm |
| Speed Range (H2O) | 7500~26000rpm | 4000~21000rpm |
| Speed Accuracy | No data | ±100rpm |
| Speed Control | Gear adjustment | Knob adjustment |
| Capacity | 0.2~10000ml (Optional) | 0.2~10000ml (Optional) |
| Time Display | No Data | LCD |
| Standard Configuration | Machine+working head+stand | Machine+working head+stand |
| Standard Working Head | 25G | 25G |
| Electricity | 200-240V (optional 110V), 50-60Hz | 200-240 (optional 110V), 50-60Hz |
| Motor Type | DC Brushless motor | DC Brushless motor |
| External Dimension | 410*φ90mm | 365*φ90mm |
| Net Weight | 2.6kg | 2.5kg |
| Package Dimension | 803*400*140mm | 810*410*150mm |
| Set Gross Weight | 8kg | 13kg |
Compatible Working Heads (Optional)
| Specification | Processing Capacity (ml) | Viscosity (cP) | Stator Diameter (mm) | Linear Speed (m/s) | Material | Functional Description |
| 6G | 0.2-10 | 100 | 6 | 6 | 316 | Suitable for dispersion, fragmentation, homogenization of animal and plant tissues. |
| 8G | 1-60 | 100 | 8 | 8 | 316 | |
| 10G | 10-150 | 200 | 10 | 10 | 316 | |
| 18G | 50-1500 | 3000 | 18 | 19 | 316 | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsion polymerization, silicone oil emulsification, homogenization, etc. in medium-high viscosity systems. |
| 18F | 100-1500 | 2000 | 18 | 19 | 316 | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsion polymerization, silicone oil emulsification, homogenization, etc. in medium-low viscosity systems. |
| 20G | 50-1500 | 3000 | 20 | 19 | 316 | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsion polymerization, silicone oil emulsification, homogenization, etc. in medium-high viscosity systems. |
| 20F | 50-1500 | 3000 | 20 | 19 | 316 | |
| 25GST | 100-5000 | 5000 | 25 | 27 | 316 | |
| 25G | 100-5000 | 5000 | 25 | 27 | 316 | |
| 25F | 100-5000 | 5000 | 25 | 27 | 316 | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsion polymerization, silicone oil emulsification, homogenization, etc. in medium-low viscosity systems. |
| 25DG | 100-5000 | 5000 | 25 | 27 | 316 | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsion polymerization, silicone oil emulsification, homogenization, etc. under vacuum and pressurized environments. |
| 25DF | 100-5000 | 5000 | 25 | 27 | 316 | |
| 25JX | 100-5000 | 8000 | 25 | 35 | 316 | Vertical convection shear mixing, suitable for medium-shear dispersion and solid/liquid mixing. |
| 25JQ | 100-5000 | 8000 | 25 | 35 | 316 | |
| 25T1 | 100-5000 | 8000 | 25 | 27 | 316 | Rapid liquid-liquid mixing and dissolution of suspended powders in medium viscosity systems. |
| 25T2 | 100-5000 | 5000 | 25 | 27 | 316 | |
| 25T3 | 100-5000 | 5000 | 25 | 27 | 316 | Solid/liquid dispersion mixing, suitable for wet grinding, effectively reducing material size and increasing uniformity. |
| 25T4 | 100-5000 | 5000 | 25 | 27 | 316 | Ultra-strong dispersion and tissue disruption, suitable for pulverization, homogenization, dispersion, and shearing of animal and plant tissues. |
| 25T5 | 100-5000 | 5000 | 25 | 27 | 316 | Suitable for dispersion and homogenization in medium-high viscosity systems. |
| 25T6 | 100-5000 | 5000 | 25 | 27 | 316 | Ultra-high-speed stirring, suitable for dissolution and dispersion in medium-high viscosity systems. |
