- Oil-Free Diaphragm Vacuum Pump
- Pumping Speed: 30 L/min, 60 L/min
- Ultimate Vacuum: 50 mbar, 150 mbar
- Diaphragm Material: HNBR
- Stable pressure, adjustable via a valve

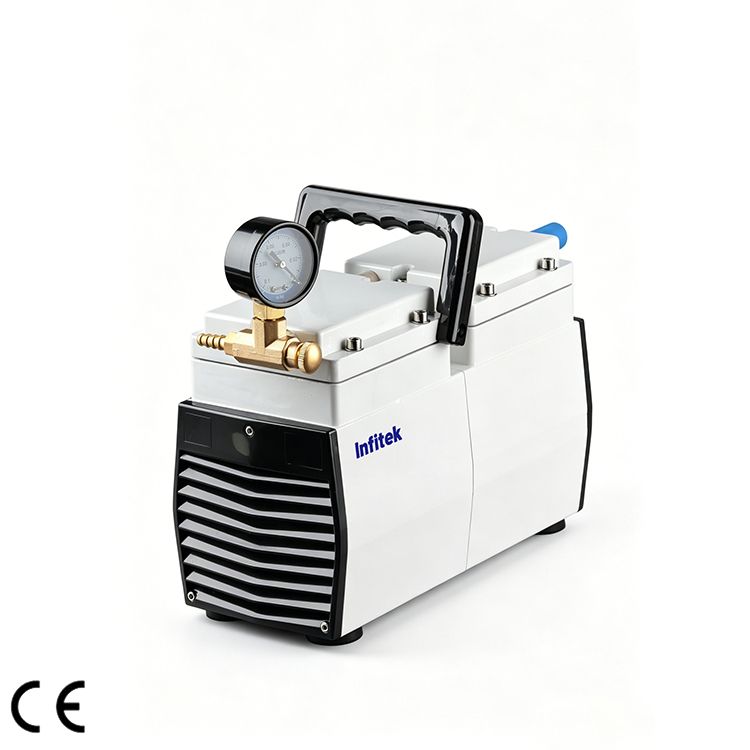

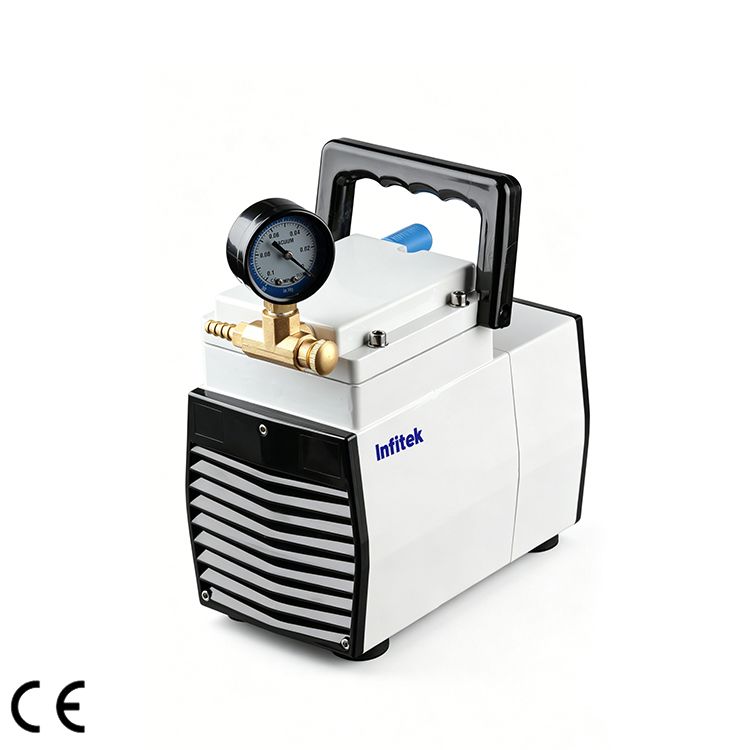

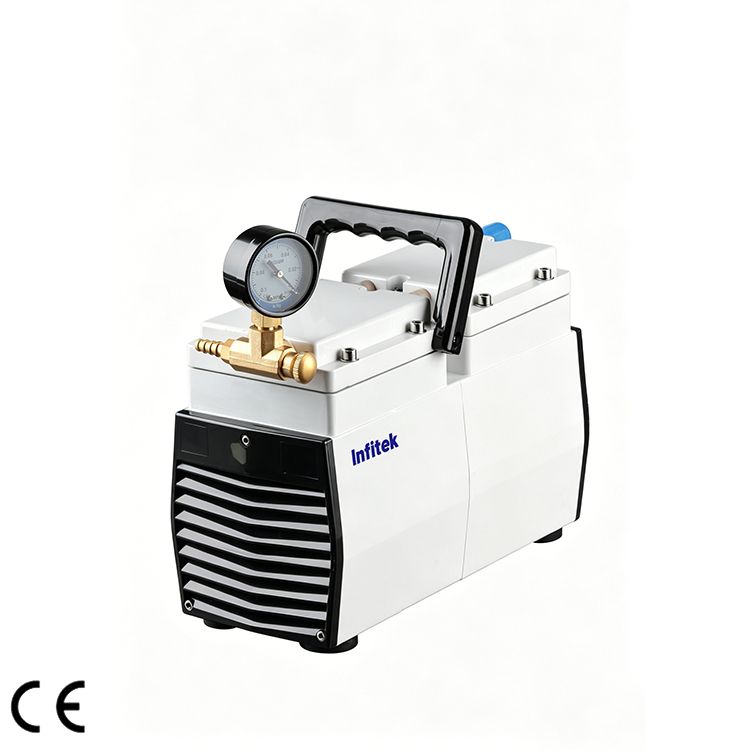

Diaphragm Vacuum Pump, VACP-LH Series
Beschreibung
These diaphragm vacuum pumps are designed for continuous, oil-free operation, featuring low noise levels and high operating efficiency. They are suitable for a wide range of laboratory applications, such as vacuum filtration and rotary evaporation. The series also includes dual-function models (providing both vacuum and pressure) to help optimize laboratory procurement costs.
Applications
- Vacuum filtration
- Drying ovens
- Eco-friendly and cost-effective alternative to water jet pumps
- Molecular distillation
- Vacuum concentration
- Gel drying
Advantages
- Stable pressure, adjustable via a valve.
- Compact, space-saving design with convenient portability.
- Plug-and-play simplicity.
- Continuously running for 24 hours.
- Easy to maintain
Specifications
| Model | VACP-LH51 | VACP-LH52 | VACP-LH102 |
| Pumping Speed (L/min) | 30 | 30 | 60 |
| Ultimate Vacuum (MPa) | >0.085 (150 mbar) | >0.095 (50 mbar) | >0.085 (150 mbar) |
| Pressure (psi) | / | / | 40 |
| Number of Pump Heads | 1 | 2 | 2 |
| Motor Power (W) | 180 | 180 | 180 |
| Diaphragm Material | HNBR | HNBR | HNBR |
| Sound Emission (dB) | <50 | <50 | <50 |
| Function | Vacuum | Vacuum | Vacuum & Pressure |
| Dimensions (L*W*H) (mm) | 250*135*210 | 315*135*210 | 315*135*210 |
| Weight (kg) | 7.5 | 10 | 10 |
| Category | Title | File type/size | Download |
| Brochure | Brochure – Vacuum Pump | PDF(1 MB) | download |
