Infinity-corrected optical system integrated with high-definition LED reflected illumination.
Full-spectrum white light source with an ultra-long lifespan and constant color temperature.
Supports brightfield and polarizing observation, suitable for analyzing large metallic specimens.

Sample Images

Specification

Model	MSC-M60X
Main Frame	Infinity-corrected optical system, with ECO automatic light-off and voice broadcast function
Observation Tube	Fixed Trinocular head with high eye point, Interpupillary 50~75mm, Light split: 100/0 and 0/100
Viewing Head	Siedentopf head, inclined at 45°
Eyepiece	Large field WF10X / FN 22, with adjustable diopter
Objectives	Semi-apochromatic brightfield metallurgical objective Plan Fluor EPI 5X/0.15, working distance 20 mm
	Semi-apochromatic brightfield metallurgical objective Plan Fluor EPI 10X/0.3, working distance 11 mm
	Semi-apochromatic brightfield metallurgical objective L Plan 20X/0.45, working distance 3 mm
	Semi-apochromatic brightfield metallurgical objective L Plan 50X/0.8, working distance 1 mm
Nosepiece	Inward-facing Quintuple Nosepiece; Ball-bearing positioning; Anti-fungus treatment.
Stage	X-Y mechanical metallographic stage; With water droplet plate;
Focusing	Coaxial coarse and fine adjustment, with locking and limit device, low-position coaxial focusing knob, fine division 2μm
Epi-illumination System	3W full-spectrum white LED, continuously adjustable brightness With polarization kit for polarized light observation With aperture diaphragm, field diaphragm, and filter holder

Category	Title	File type/size	Download
Brochure	Brochure-Microscopes	PDF(4 MB)	download

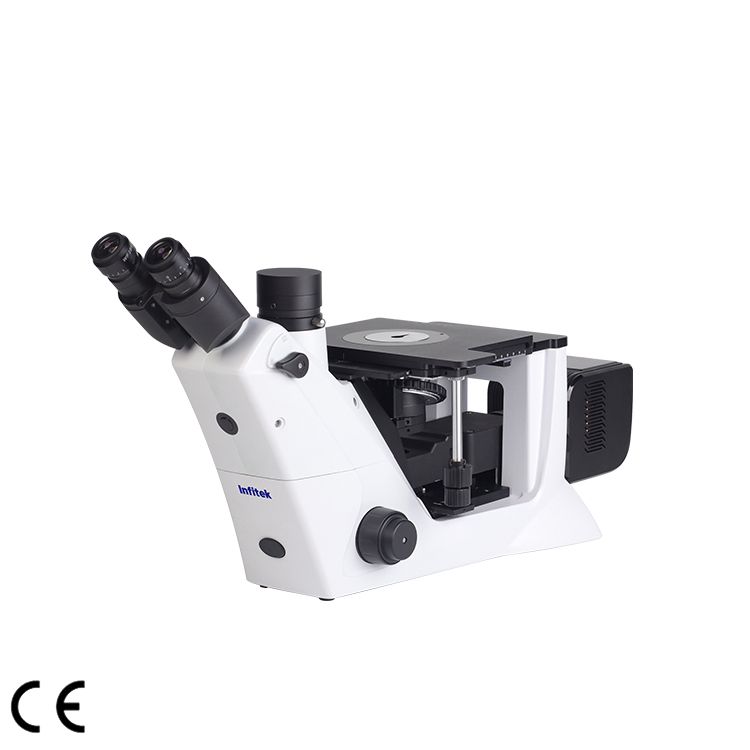

Metallurgical Microscope, MSC-M60X
